LGFG 2
General purpose food grade grease
SKF LGFG 2 is a high performance food grade grease using complex calcium sulphonate thickener technology and a white mineral oil. It is suitable for applications subjected to high loads, wet environment and fluctuating temperatures encountered in the among others food and beverage industry.
Features & benefits
- Wide temperature range
- Outstanding water resistance and corrosion protection
- Excellent mechanical stability
- Great dispensability in single point automatic lubricators
- Excellent protection against high loads and wear
- NSF ISO 21469 registered as well as Halal and Kosher certified
Typical applications
- Conveyor bearings
- Wrapping machines
- Bottling machines

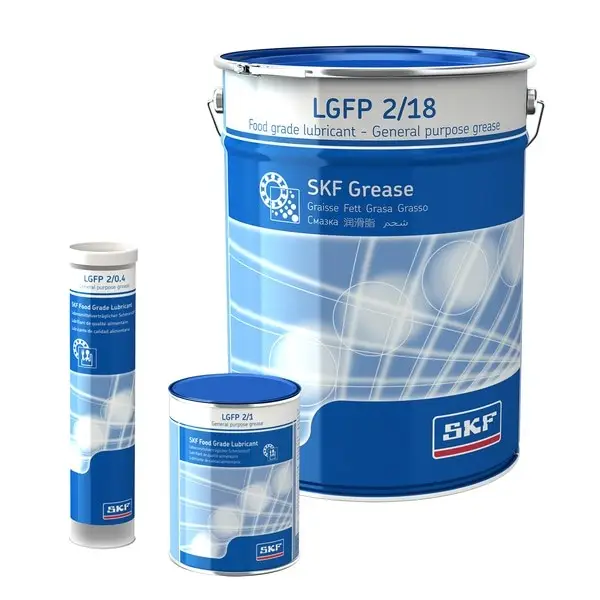

| Pack size | Designation |
| 420 ml cartridge | LGFG 2/0.4 |
| 1 kg can | LGFG 2/1 |
| 18 kg pail | LGFG 2/18 |
| 180 kg drum | LGFG 2/180 |
| Gas driven lubricators | |
| LAGD series 60 ml | LAGD 60/FG2 |
| LAGD series 125 ml | LAGD 125/FG2 |
| Electro-mechanical lubricators | |
| TLSD series 125 ml | TLSD 125/FG2 |
| TLSD series 125 ml refill | LGFG 2/SD125 |
| TLSD series 250 ml | TLSD 250/FG2 |
| TLSD series 250 ml refill | LGFG 2/SD250 |
| Electro-mechanical lubricant dispensers | |
| TLMR 101 series 380 ml refill (incl. battery) | LGFG 2/MR 380B |
| TLMR 201 series 380 ml refill | LGFG 2/MR380 |
| Designation | LGFG 2/(pack size) | |
| DIN 51825 | KP2N-30 | |
| NLGI consistency class | 2 | |
| Thickener | Calcium sulphonate complex | |
| Colour | Brown | |
| Base oil type | White mineral | |
| Operating temperature range | –30 to +140 °C (–22 to +285 °F) | |
| Dropping point, DIN ISO 2176 | 280 °C min. (536 °F min.) | |
| Base oil viscosity | 40 °C, mm²/s | 150 |
| 100 °C, mm²/s | 16 | |
| Penetration DIN ISO 2137 | 60 strokes, 10–1 mm | 265–295 |
| 100 000 strokes, 10–1 mm | +50 max. | |
| Mechanical stability | Roll stability, 50h at 80 °C, , 10–1 mm | +50 max. |
| Corrosion protection | Emcor: – standard ISO 11007 | 0–0 |
| DIN 51 807/1, 3 hrs at 90 °C | 0–0 | |
| DIN 51 817, 7 days at 40 °C, static, % | 0–0 | |
| Water resistance | DIN 51807/1, 3 hrs at 90 °C | 1 max. |
| Oil separation | DIN 51817, 7 days at 40 °C, % | 1-5 |
| Lubrication ability | R2F, running test B at 120 °C (248 °F) | Pass |
| Copper corrosion | DIN 51811 at 100 °C (210 °F) | 1 max. |
| Rolling bearing grease life | R0F test L50 life at 10 000 r/min., hrs | 1 000 min. at 120 °C (248 °F) |
| EP performances | DIN 51350/5, wear scar, 1 400 N, mm | 1 max. |
| DIN 51350/4, 4-ball test, welding load, N | >4 000 min. | |
| Shelf life | 2 years | |
| NSF Reg. No. | 164513 |
